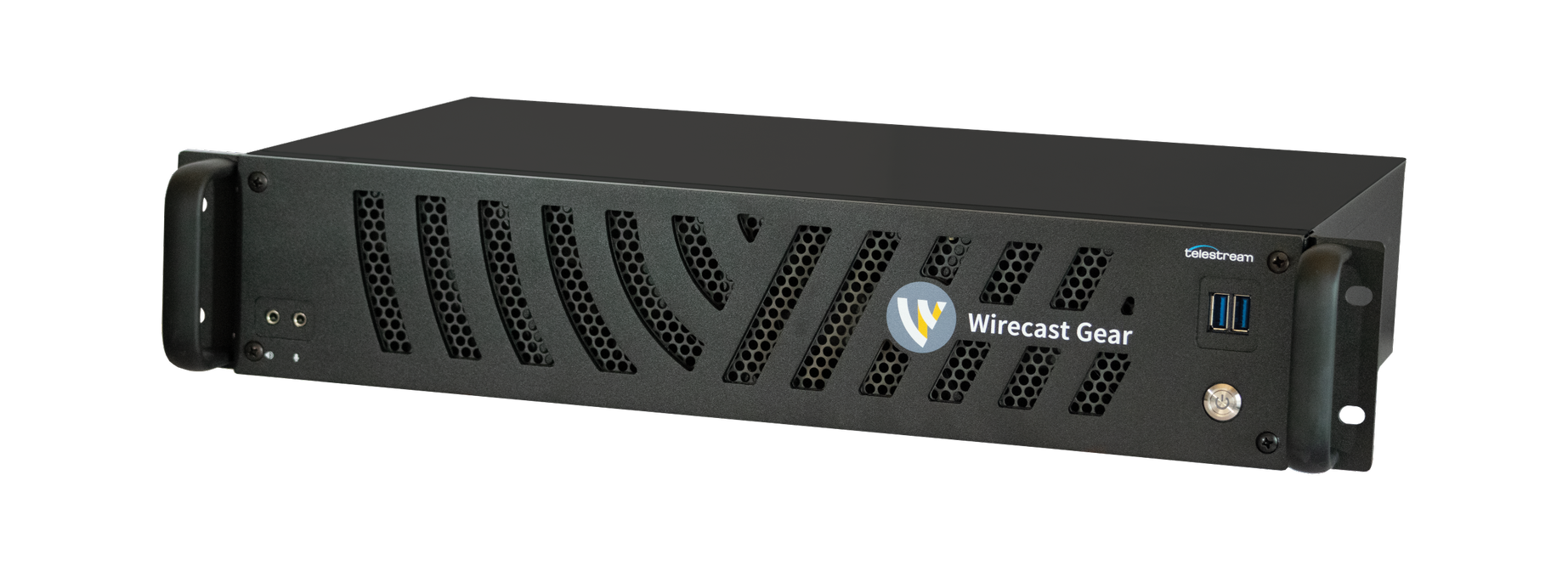

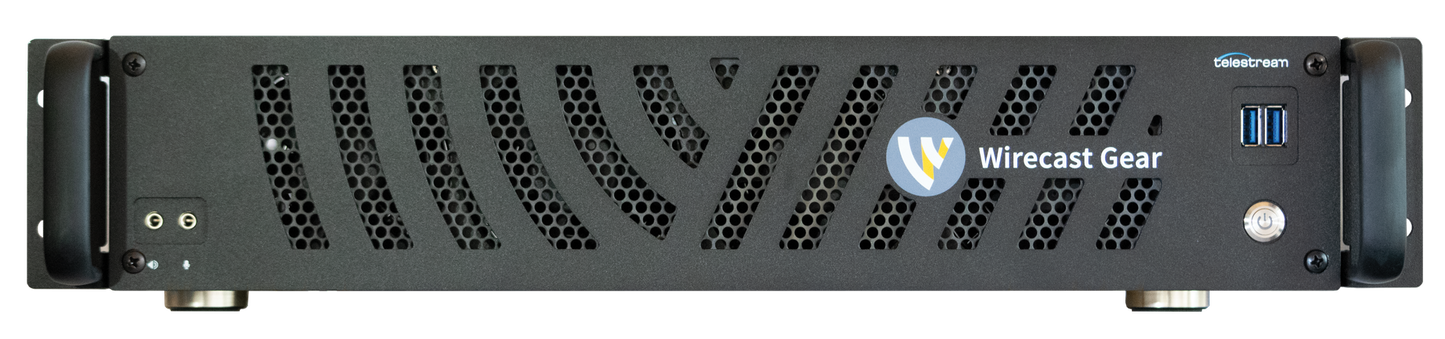

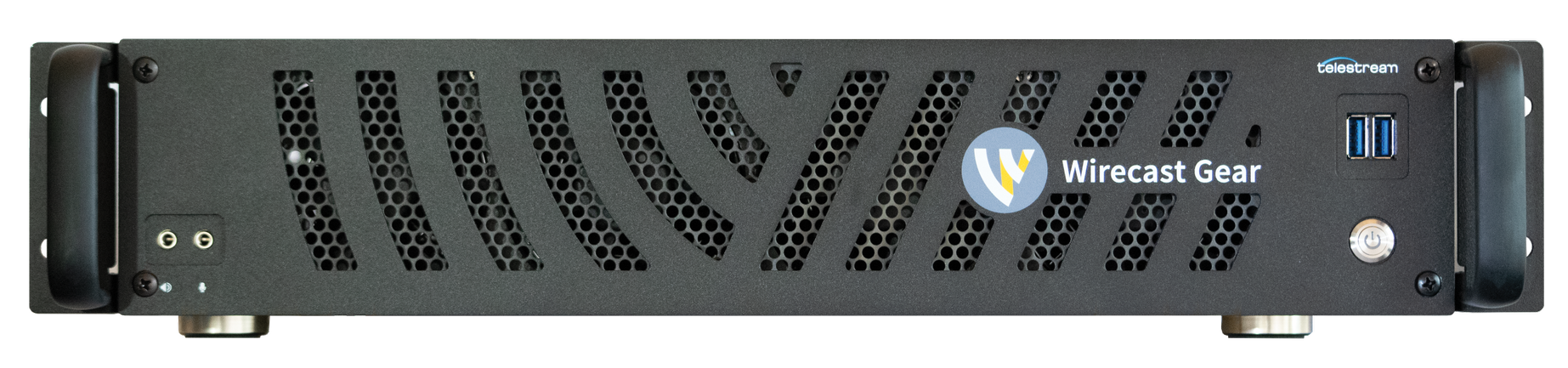

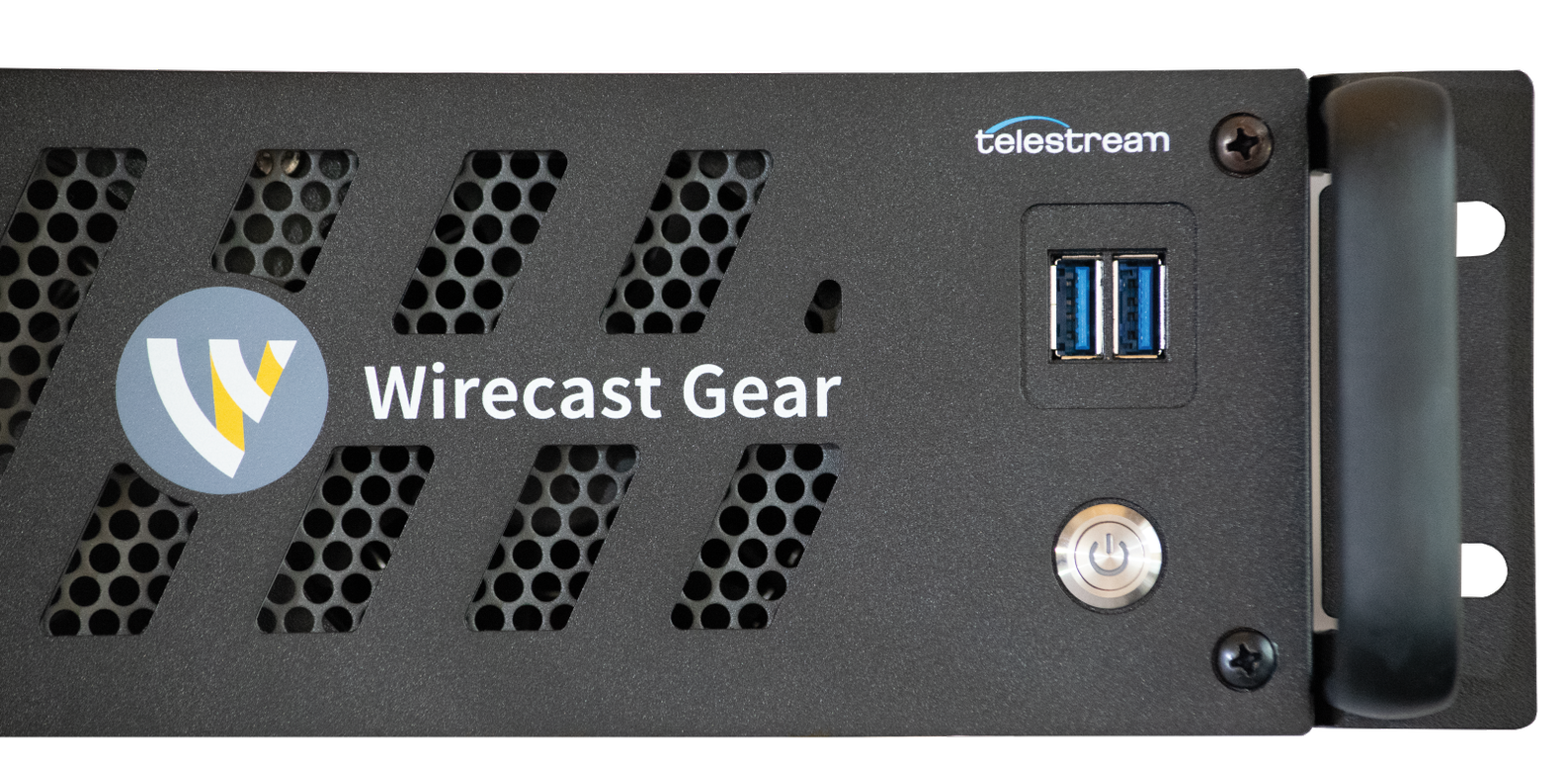

TELESTREAM WIRECAST GEAR 3 HD

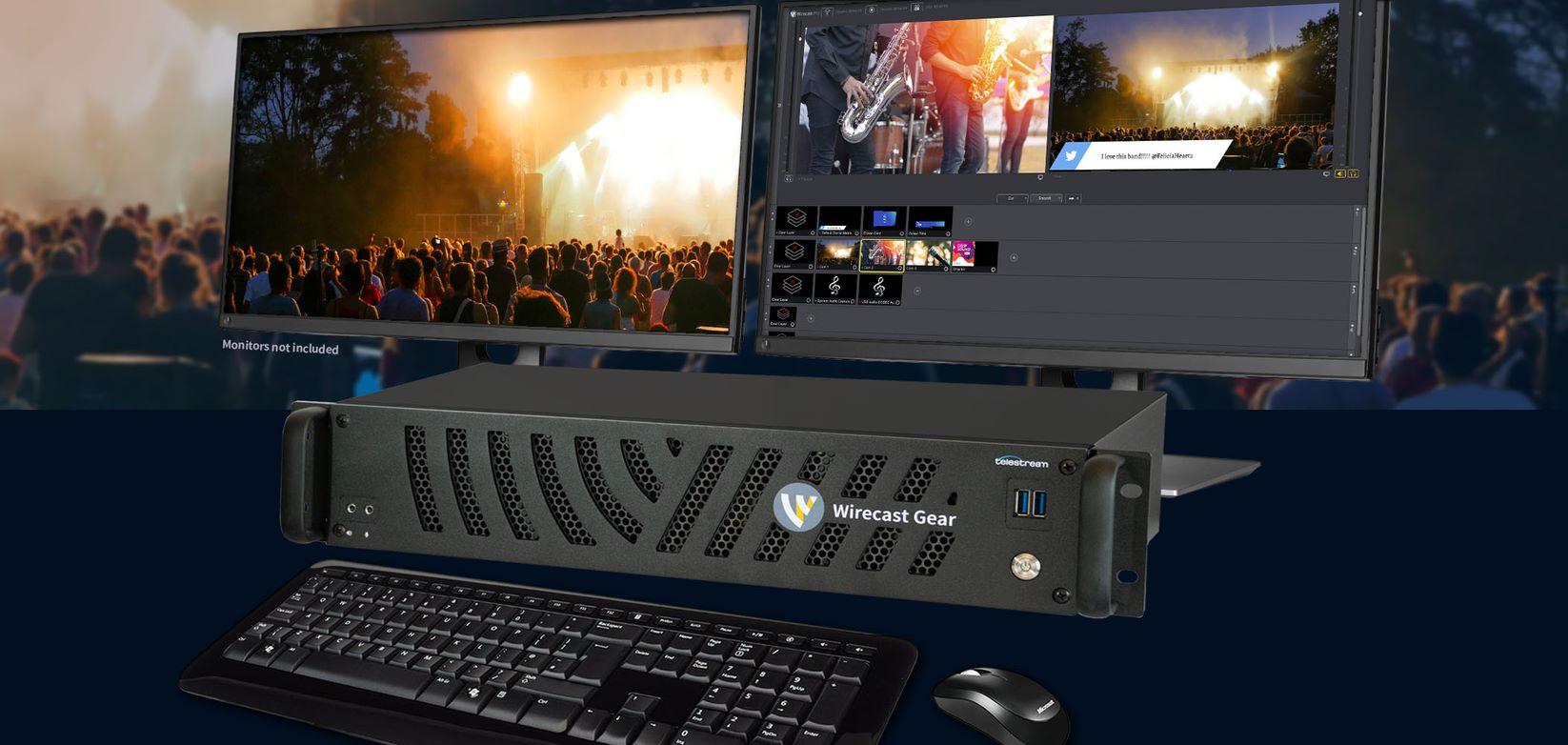

Wirecast Gear 3 is a family of turnkey lives video streaming and broadcast production appliances. Fully integrated into a single device, Gear 3 provides plug-in-and-go live-streaming and video production for up to five HD or 4K SDI, or four HDMI, sources. Live sports, news broadcasting, worship streaming, and live/ virtual event production is now available in one ready-to-go, convenient, rack-mountable unit.

Every Gear 3 unit comes with an ultra-fast AMD Ryzen six-core processor, NVIDIA Quadro GPU for acceleration and encoding, Wirecast Pro software with Stock  Media Library for video production and switching, and  Switch Player to inspect and monitor the quality of your content. Built as a flexible Windows machine, Gear also supports common applications such as Microsoft  Teams, Zoom, Adobe Creative Cloud, and more as the most comprehensive, configurable, and professional
hardware appliance in its class. Elevate event production with ease and without stress when you take advantage of our top-of-the-line Wirecast Gear

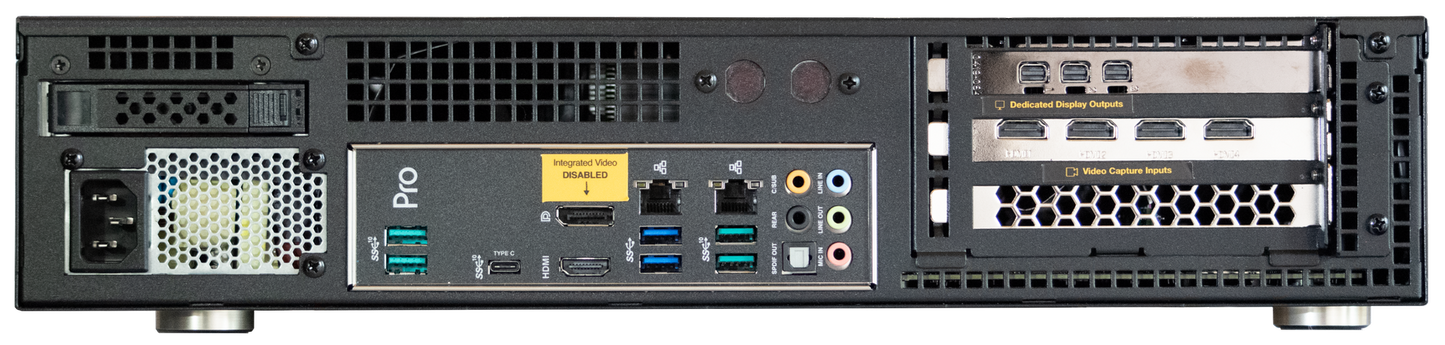

Wirecast Gear 3 HD-HDMI
With 4 1080p60 HDMI capture ports, NDI input/output, professional audio inputs and outputs, GPU acceleration, and 16 GB of system memory,  setting up your broadcast to go live has never been easier. Stream live  church services, sporting events, classroom sessions, concerts, corporate  communications, and more with confidence using Gear 3

Or

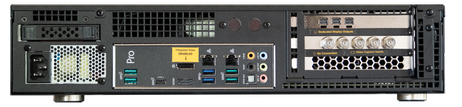

Wirecast Gear 3 HD-SDI
Up the ante and bring up to 4 1080p60 SDI camera sources into  Wirecast Gear. Get all the same benefits of the Gear 3 HD HDMI, with the additional power and flexibility that SDI brings to the table. Add  polish and professionalism to live broadcasts with a powerful, all-in-one streaming solution
Product Features

• AMD Ryzen 5 6-core/12-thread processor
• NVIDIA Quadro GPU for acceleration and encoding
• System Memory: 16GB
• 2RU form factor with 12”/30cm dept
• HDMI RGB 4:4:4 or YUV 4:2:2 inputs: 4x1080p60
• NDI input/output
• Mini DisplayPort 1.4 outputs with latching connectors: 3
• Audio: 2-ch Line In/Out, Mic In/Out & Front Line Out + Mic In + Surround (surround not supported in Wirecast)
• USB 3.1: 9  total, incl. rear USB-C + dual front-mounted USB-A
• Gigabit Ethernet:  2 xRJ-45 IEEE 802.3ab
• SSD System Drive: 250GB NVMe M.2
• SSD Storage Drive 1TB SATA3
• Telestream Wirecast Pro live production software with Stock Media Library
• Telestream Switch Pro media player
• Microsoft Windows 10 IoT Enterprise LTSC 2021 Operating System
• One-year Telestream Warranty

Hardware

Internal Configuration (all models):

• CPU: AMD Ryzen 5 5600X 6-core/12-thread 4.6GHz (max)
• Motherboard Chipset: AMD X570
• GPU: NVIDIA Quadro T400 (HD models) / T1000 (4K models)
• Memory: 16GB DDR4-3200
• System Drive: 250GB NVMe M.2
• Storage Drive: 1TB SATA3
• USB: USB 3.1 Gen 2 (1xUSB-C rear + 4xUSB-A rear),
  USB 3.1 Gen 1 (2xUSB-A front, 2xUSB-A rear)
• Network: 2xRJ-45 IEEE 802.3ab Gigabit Ethernet

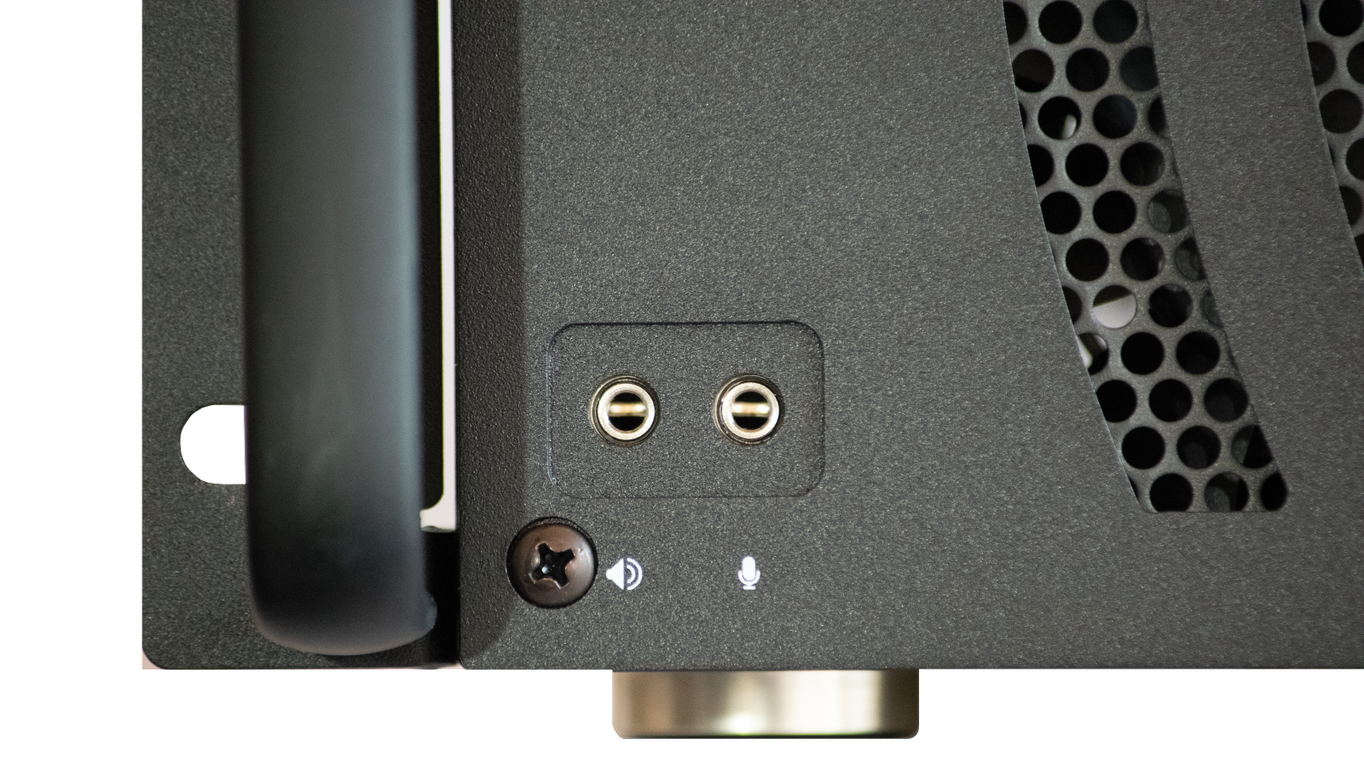

• Audio: 2-ch Line In/Out, Mic In/Out + Front Line Out / Mic In +
•  Ls/Rs/Lb/Rb/C/S
• User Input: Microsoft Wireless Keyboard/Mouse
• Accessories: 6’/183cm IEC C-14 3-pin cable (grounded plug
•  determined by area of sale), Mini DisplayPort to
•  DisplayPort adapter

Video Inputs and Outputs (by model)
Display Output –

• Wirecast Gear 3 HD HDMI: 3x Mini DisplayPort 1.4 920x1080 @ 60Hz max

Capture Input -

• Wirecast Gear 3 HD HDMI: 4x HDMI 1.4a (non-HDCP)

Or

Display Output –

• Wirecast Gear 3 HD SDI: 3x Mini DisplayPort 1.4 1920x1080 @ 60Hz max
  (Can assign one input instead to 3G-SDI SMPTE 422M,  1920x1080 @ 60Hz max)

Capture Input -

• Wirecast Gear 3 HD SDI: 4x 3G-SDI SMPTE 424M 1920x1080 @ 60Hz 4:2:2 max

Physical

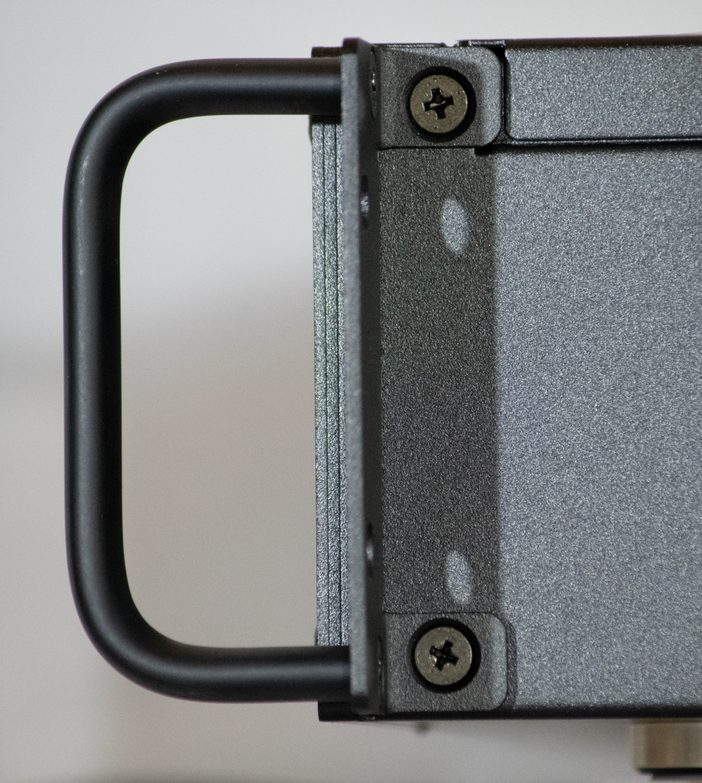

• Dimensions: 16.7” x 12” x 3.5” (42.4cm x 30.5cm x 8.9cm),   2RU x19” w/handles
• Weight: 14.5-15.5 lb. (unit only)

Power

• Input Voltage: 90VAC-264VAC RMS Single Phase 47Hz-63Hz
• Input Current: 8A @ 115VAC 60Hz RMS, 4A @ 230VAC 50Hz RMS, Single Phase
• Input Connection: IEC 60320 C14 3-pin
• Operating Temperature/Humidity: 32 – 104 F @ 20-80% (operating), -4 – 185 F @ 10-90% (storage)

• Wirecast Gear
• Power cable
• Wireless keyboard
• Wireless mouse
• AA batteries for both the keyboard and mouse
• USB dongle that provides wireless connectivity for both the keyboard and mouse
