RGBLink

RGBLINK PTZ VUE 20X PTZ CAMERA

RGBLINK PTZ VUE 20X PTZ CAMERA

Regular price $799.00 USD
Regular price Sale price $799.00 USD
Sale Sold out

 RGBLINK PTZ VUE

Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras.

Pan, Tilt, and Zoom to capture all the action – get in even closer with 10X digital zoom, and the best video with autofocus, dynamic level adjustment (WDR), and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps. All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.

Key Features
      • High-speed optical zoom
      • Low-Latency SRT Upload to Cloud
      • High performance in low-light scenarios with a Wide Dynamic Range
      • Full 1920×1080p HD resolutions up to 60 frames per second
      • H.265/H.264 dual stream output adapted to different network environments
      • Pan and Tilt Control
      • Optional interface
      • 20Xoptical zoom
      • Wide application
      • Low-power sleep function

SPECIFICATIONS:

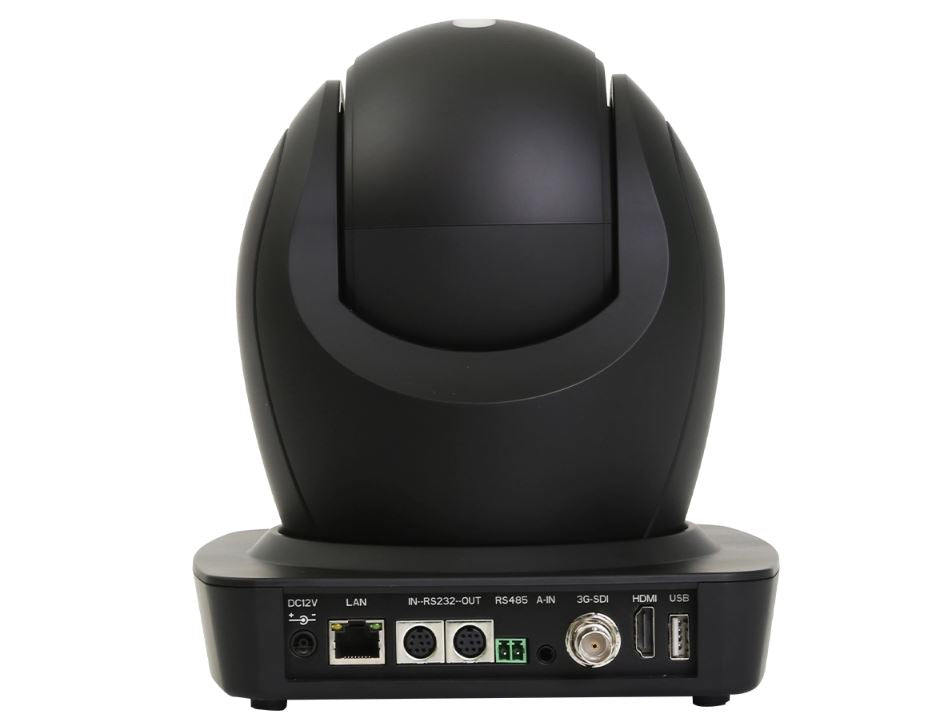

Output

  • 3G SDI: 1xBNC
  • HDMI: 1xHDMI-A
  • USB: 1xUSB-A
  • LAN : 1xRJ45
Optical Zoom
  • 20x
Audio
  • IN: 1x3.5mm Stereo Jack
Control
  • RS232 IN/OUT: 2xDIN8
  • RS485: 1x4pin Terminal
Power
  • 1xDC12V Jack

Performance

Camera
  • Optical Zoom: f=5.05~91.50mm
  • View Angle: 3.45°~ 60.04°
  • AV: F1.8 ~ F2.9
  • Digital Zoom: 10X
  • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
  • DNR: 2D & 3D DNR
  • White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
  • Focus: Auto/Manual
  • Aperture/Electronic Shutter: Auto/Manual
  • BLC: ON/OFF
  • WDR: OFF/Dynamic Level Adjustment
  • Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
  • SNR: >55dB
  • Effective Pixels: 2.07m,16:9
Pan-and-Tilt Parameter
  • Pan/Tilt Movement: -170°~+170°/'-30°~+90°
  • Pan/Tilt Control Speed: 0.1~60°/S;0.1~30°/S
  • Preset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
  • 360° TALLY: full 360° view of TALLY
Audio Compression Format
  • AAC | MP3 | G.711A
Video Compression Format
  • H.264 | H.265 | Dual Streaming Output
Output Resolutions
  •  720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60
Control Protocol
  • VISCA | Pelco-D | Pelco-P
Baud Rate(bps)
  • 115200 | 9600 | 4800 | 2400bps
Network Protocol
  • RTSP | RTMP | SRT | ONVIF

Supported Standards
  • SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

Power

Input Voltage
  •  DC12V/1.5A
Max Power
  • 12W

Environment

Temperature
  • -10℃~50℃
Humidity
  • 20%~80%

Physical

Weight
  •  Net: 1.7kg
Dimension
  •     Net: 180mm(front)×188mm(side)×198mm(height)
