RGBLINK PTZ NDI 20X CAMERA

RGBLINK PTZ NDI 20X CAMERA

Regular price $1,399.00 USD
Regular price Sale price $1,399.00 USD
Sale Sold out

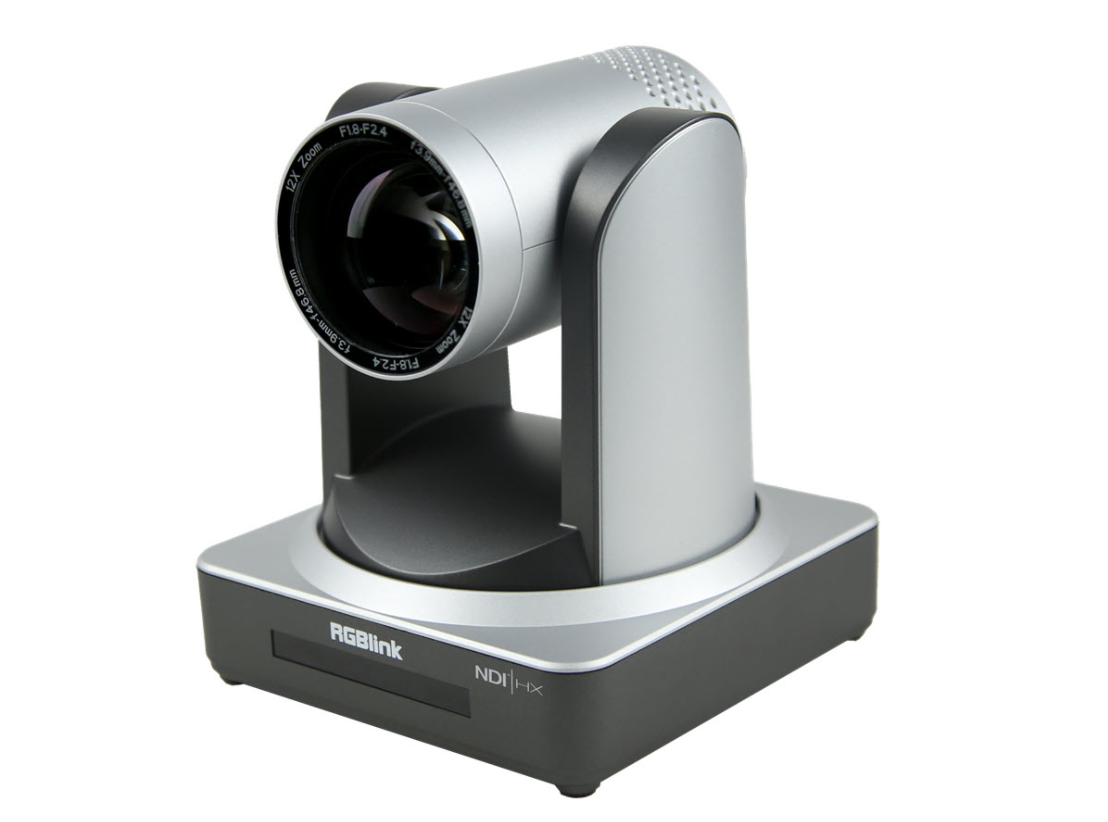

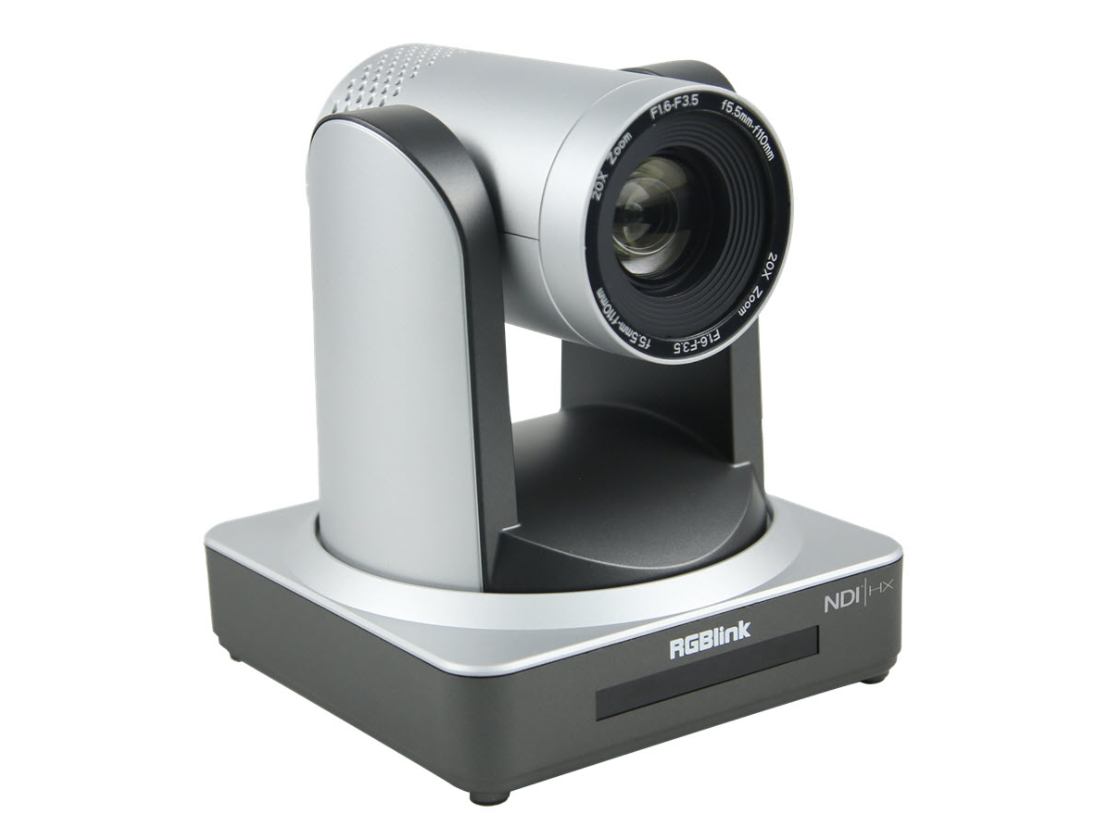

 RGBLINK PTZ NDI 20X CAMERA

Overview
This series camera offers perfect functions, superior performance, and rich interfaces. It employs 1/2.8 inch high-quality CMOS sensor. The resolution is 1920x1080 with a frame rate of up to 60 fps. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding, making motion video fluent and clear even with less-than-ideal bandwidth conditions. It supports multiple network protocols, including NDI. It can be applied in multiple fields, including Tele‐education,  Lecture capture, Webcasting, Videoconferencing, Tele‐training, Telemedicine, Interrogation, and Emergency command systems.

Key Features
  • NDI Support on board
  • 20x high-speed optical zoom
  • High performance in low light with a Wide Dynamic Range
  • White Balance control
  • 1920x1080p FullHD camera resolution up to 60fps
  • HDMI & SDI outputs

Specifications:

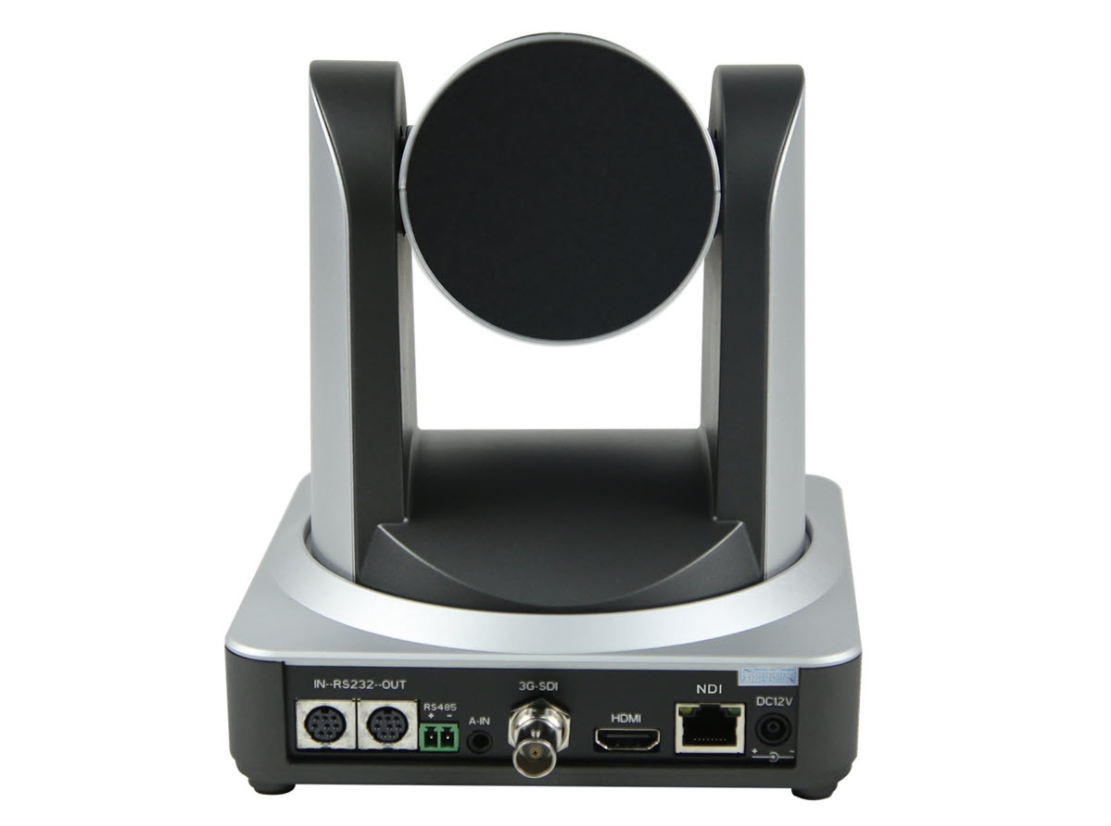

Connectors
Video Output
HDMI - 1xHDMI-A
SDI - 1xBNC
Audio
Input - 1x3.5mm mini-Jack
Communication
Network/LAN - 1xRJ45
RS232 - 2xDIN-8
RS485 - 1x2way Terminal Connector
Power
1×HEC3800 DC Socket

Performance
Optical Zoom
20x f=5.5~110mm
12x f=3.9~46.8mm
Digital Zoom
10x
Viewing Angle
20x 3.3°~ 54.7°
12x 6.3°~72.5°
AV
20x f1.6 ~ f3.5
12x f1.8~f2.4
Illumination
Min 0.5 lux (F1.8, AGC ON)
Noise Reduction (DNR)
2D & 3D
White Balance
Auto | Manual | One Push | 3000K | 3500K | 4000K | 4500K | 5000K | 5500K | 6000K | 6500K |7000K
White Range (WDR)
OFF | Dynamic
Focus
Auto | Manual
Aperture / Shutter
Auto | Manual
BLC
ON | OFF
Adjustments
Brightness | Color | Saturation | Contrast | Sharpness | B/W | Gamma Curve
SNR
>55dB
Pixels
2.07m (16:9)

Positioning
Movement
Pan: -170°~+170°
Tilt: -30°~+90°
Speed
Pan: 0.1sec ~60°
Tilts: 0.1sec~30°/S
Presets
Up to 255

Output Resolutions
SDI | HDMI
720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60
H.264 | H.265
720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60

Standards Supported
SDI
SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
HDMI
1.3
IP Streaming
H.264 | H.265 | NDI
Audio
AAC | MPEG3 | G.711A
PTZ Control
NDI | VISCA | Pelco-D | Pelco-P
Network
RTSP | RTMP | ONVIF | GB/T28181 | VISCA | NDI

Power
Input Voltage
DC12V/1.5A (via Plug Pack supplied)
Max Power
12W

Environment
Temperature
-10℃~50℃
Humidity
20%~80% RH

Physical
Weight Net (device)
1.4kg
Dimensions Net (device)
150mm x 150mm x 167.5mm
